Product Details:

Place of Origin:	CHINA
Brand Name:	TB or OEM
Certification:	CE
Model Number:	Multisided Cross-Section Lighting Poles Series

Payment & Shipping Terms:

Contact Now

Description

Material::	Carbon Steel Q235	Color::	HDG, Black, Etc.
Height::	3m-30m	Wall Thickness::	3mm-6mm
Base Plate Thickness::	16mm-40mm	Galvanization Thickness::	60um-100um
Powder Coating Thickness::	80um-180um	Anchor Bolts::	M20-M42
Designed Gust Wind::	26m/s-50m/s	Warranty::	Galvanized: 5 Years; Galvanzied And Powder Coated: 5 Years

Features of Tapered Octagonal Lighting Poles:

•Height=2m~30m;

•Steel Materials: Q235,Q345,SS400 or any equivalent;

•Welding: Welding complies with CSA, AWS, Australian/New Zealand standard, or BS EN 40-5; All sharp edges and burrs are removed;

•Finish: Hot-dip galvanization to ASTM A123-01/ISO1461 or be color powder coating after galvanization or powder coating only;

•Customized lighting poles available.

Lighting Poles Specifications:

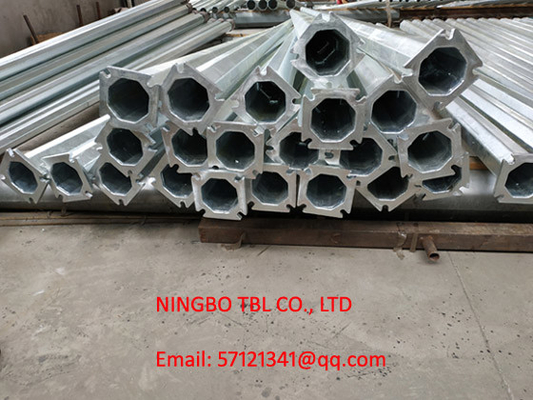

Tapered Octagonal Lighting Poles
Items	Pole Top Size (mm)	Pole Bottom Size (mm)	Wall Thickness (mm)	Base Plate Size (mm)	PCD(mm)	Anchor Bolts Size (mm)
4.5m tapered octagonal poles	85	135	3	233x233x16	233	M20X700
5m tapered octagonal poles	85	142	3	233x233x16	233	M20X700
5.5m tapered octagonal poles	85	152	3	233x233x16	233	M20X700
6m tapered octagonal poles	85	157	3	233x233x16	233	M20X1200
8m tapered octagonal poles	85	172	3	330x330x20	350	M20X1500
9m tapered octagonal poles	85	185	3	330x330x20	350	M24X1400
