20FT Square Poles, 25FT Square Metal Poles, LED Lighting Poles, Outdoor Lighting Poles, Powder Coating Poles

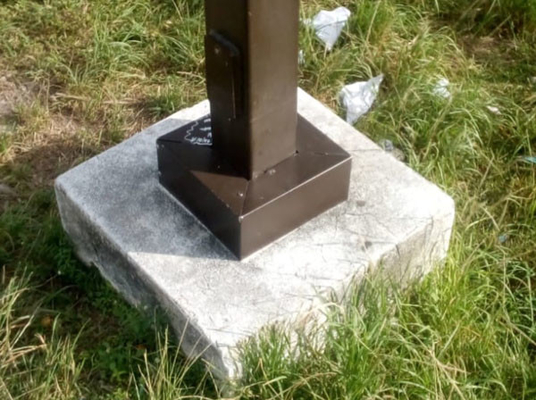

Large Image : 20FT Square Poles, 25FT Square Metal Poles, LED Lighting Poles, Outdoor Lighting Poles, Powder Coating Poles

Product Details:

Place of Origin:	CHINA
Brand Name:	TB or OEM
Certification:	CE
Model Number:	Square Lighting Poles Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Packaging Details:	Standard Package
Delivery Time:	20-40 work days
Payment Terms:	T/T
Supply Ability:	10000 PCS Per Month

Contact Now

20FT Square Poles, 25FT Square Metal Poles, LED Lighting Poles, Outdoor Lighting Poles, Powder Coating Poles

Description

Material::	Carbon Steel Q235	Color::	Dark Bronze
Height::	10FT-35FT	Wall Thickness::	3mm-5mm
Base Plate Thickness::	20mm-25mm	Anchor Bolts::	M20-M24
Powder Coating Thickness::	More Than 180um	Desinged Wind Speed::	26m/s-50m/s
Warraty::	Powder Coated Only: 1 Year; Galvanized+Powder Coated: 5 Years

Features of Square Lighting Poles:

•Height=2m~11.7m;

•Steel Materials: Q235,Q345,SS400 or any equivalent;

•Welding: Welding complies with CSA, AWS, Australian/New Zealand standard, or BS EN 40-5; All sharp edges and burrs are removed;

•Finish: Hot-dip galvanization to ASTM A123-01/ISO1461 or be color powder coating after galvanization or powder coating only;

•Customized lighting poles available.

Lighting Poles Specifications:

Square Lighting Poles
Items	Pole Top Size (mm)	Pole Bottom Size (mm)	Wall Thickness (mm)	Base Plate Size (mm)	PCD(mm)	Anchor Bolts Size (mm)
10ft square poles	100/102	100/102	3	customized	customized	M20X700
15ft square poles	100/102	100/102	3	customized	customized	M20X700
20ft square poles	100/102	100/102	3	customized	customized	M20X700
25ft square poles	100/102	100/102	3/4/5	customized	customized	M20X700
30ft square poles	12-	12-	3/4/5	customized	customized	M24X900
35ft square poles	12-	12-	4/5	customized	customized	M24X900

20FT Square Poles, 25FT Square Metal Poles, LED Lighting Poles, Outdoor Lighting Poles, Powder Coating Poles 0
