Product Details:

Place of Origin:	CHINA
Brand Name:	TB or OEM
Certification:	CE
Model Number:	Hinged Lighting Poles Series

Payment & Shipping Terms:

Contact Now

Description

Material::	Carbon Steel Q235	Finish::	HDG Or Powder Coating
Height::	3m-20m	Wall Thickness::	3mm-5mm
Base Plate Thickness::	16mm-40mm	Anchor Bolts::	M20-M42
Designed Gust Wind::	26m/s-50m/s	Life Span::	More Than 30 Years
Warranty::	Galvanized: 5 Years; Galvanzied And Powder Coated: 5 Years

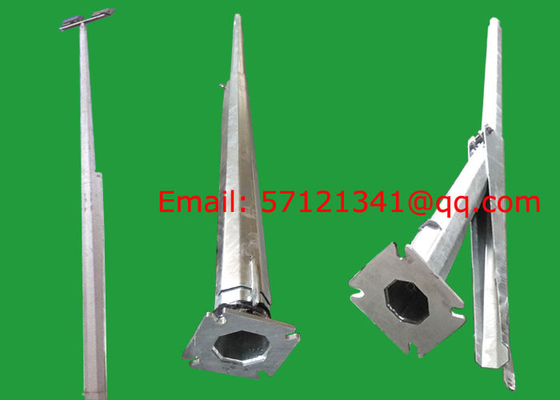

Features of Hot Dip Galvanized Mid-Hinged Lighting Poles:

•Height=3m~20m;

•Steel Materials: Q235,Q345,SS400 or any equivalent;

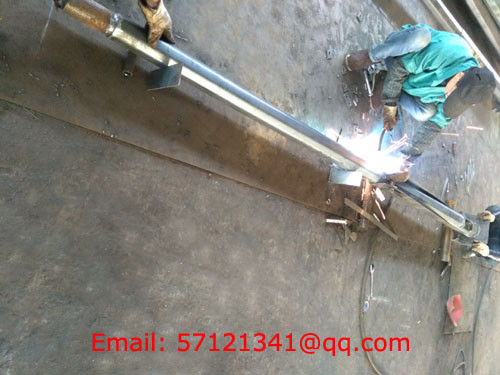

•Welding: Welding complies with CSA, AWS, Australian/New Zealand standard, or BS EN 40-5; All sharp edges and burrs are removed;

•Finish: Hot-dip galvanization to ASTM A123-01/ISO1461 or be color powder coating after galvanization or powder coating only;

•Customized lighting poles available.

Hot Dip Galvanized Mid-Hinged Lighting Poles Specifications:

Hot Dip Galvanized Mid-Hinged Lighting Poles
Items	Pole Top Size (mm)	Pole Bottom Size (mm)	Wall Thickness (mm)	Base Plate Size (mm)	PCD(mm)	Anchor Bolts Size (mm)
4.5m tapered octagonal hinged poles	85	135	3	233x233x16	233	M20X700
5m tapered octagonal hinged poles	85	142	3	233x233x16	233	M20X700
5.5m tapered octagonal hinged poles	85	152	3	233x233x16	233	M20X700
6m tapered octagonal hinged poles	85	157	3	233x233x16	233	M20X1200
8m tapered octagonal hinged poles	85	172	3	330x330x20	350	M20X1500
9m tapered octagonal hinged poles	85	185	3	330x330x20	350	M24X1400
